Manfrotto 504X Fluid Head and 635 Fast Single Carbon Fibre Leg Tripod

£1,060.79

SKU
MVK504XSNGFC

Manfrotto 504X Fluid Head & 635 Fast Single Carbon Fibre Leg Tripod.

  • Fluid video head with 4-step counterbalance system up to 6.5 kg.
  • Maximum versatility thanks to flat base
  • FAST Twisting Lock: secure locking with a single gesture
  • Carbon Fiber single leg tripod for greater rigidity
  • Side lock plate attachment and two 3/8'' easy link connectors

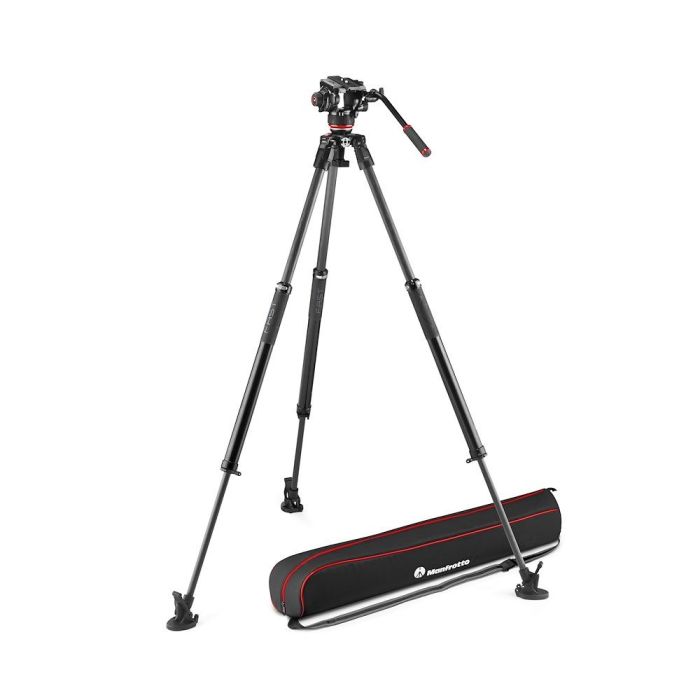

This video system includes the Manfrotto 504X Fluid Video Head and the Manfrotto 635 Fast Single Leg Carbon Tripod.

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The tripod head is made from a brand-new aluminium design and has a maximum payload of 12 kg.  It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The 635 Fast Single Tripod was developed with the primary objective of making video shooting easier by reducing set up times and maintenance. The FAST Twisting Lock technology enables videographers to control the entire leg with a single lock and get to work quickly. The new tripod provides maximum versatility, supporting the use of a extensive choice of heads, and ensuring the utmost rigidity while also being extremely lightweight.

It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most varied shooting locations.

Supplied with its own padded carrying bag.

Specification
Specification
Top Attachment 1/4" screw; 3/8" screw
Ball Flat Flat
Counterbalance System Variable Steps
Base Diameter 75mm
Bubble Spirit Level (No.) 1
Certifications WEEE; RoHS
Easy Link Yes
Head Type Video/Fluid Head
Pan Bar Included Yes
Panoramic Rotation 360 º
Quick Release Yes
Counterbalance Weight 2.2; 4.4; 6.5 Kg
Centre of Gravity 55 mm
Front Tilt -70º / +90º
Tilt Drag Continuously adjustable from 0 to max level
Pan Drag Continuously adjustable from 0 to max level
Plate Type 504PLONGR-1
Safety Payload Weight 12 Kg
Powered By (Batteries) Lithium
Quick Release Yes
Carrying Bag Included Yes
Centre Column No centre column
Closed Length 89.5 cm
Colour Black
Leg Type Single
Leg Angles 20º; 50º; 70º
Leg Lock Type Twist Lock
Leg Sections 3
Legs Tube Diameter 29.2; 24.8; 20.4 mm
Material Aluminium; Carbon Fibre
Maximum Height 171 cm
Maximum Working Temperature 60ºC
Minimum Height 44.5 cm
Minimum Working Temperature -30ºC
Compatible Accessories 165; 165MV; MVASPR2N1; 114; 114MV; 181B; 127; 127VS
Weight 5.8 Kg
