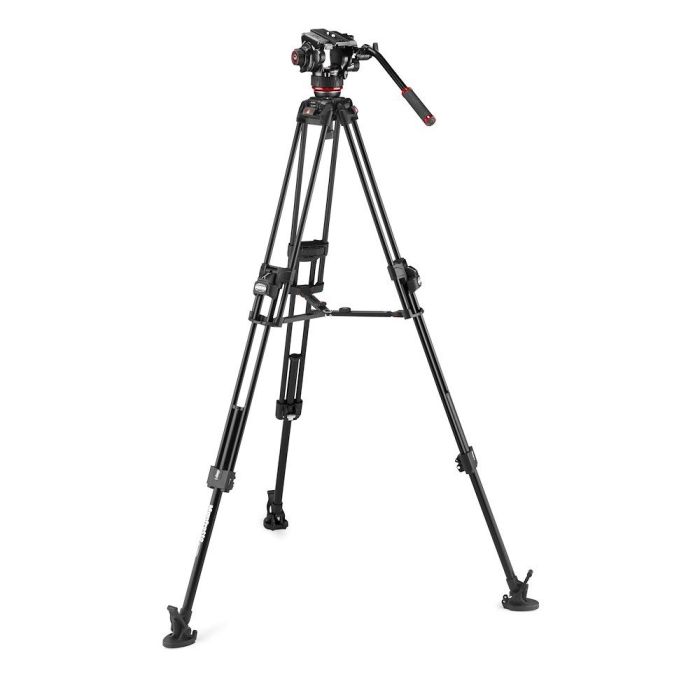

Manfrotto 504X Fluid Video Head with 645 Fast Twin Alu Tripod

£878.29

SKU
MVK504XTWINFA

Manfrotto 504X Fluid Video Head with 645 Fast Twin Alu Tripod.

  • Fluid video head with 4-step counterbalance system up to 6.5 kg
  • Maximum versatility thanks to flat base
  • FAST Lever Lock & 3-angle selection mechanism for easy set up
  • 100 mm half ball, compatible with a 75 mm half ball adapter.
  • Side lock plate attachment and two 3/8'' easy link connectors.


This video system includes the Manfrotto 504X Fluid Video Head and the Manfrotto 645 Fast Twin Leg Aluminium Tripod.

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The tripod head is made from a brand-new aluminium design and has a maximum payload of 12 kg.  It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The 645 FTT Fast Twin Alu Tripod features double tubing and FAST Lever Lock technology for the strongest support ever. The synchronized closure mechanisms between the upper and lower locks allow videographers to control the entire leg with a single lock and get to work quickly.

The tripod is provided with a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to enable the use of a wider range of video heads. It also features a middle spreader lock. However, the 3-angle selectors make the use of a spreader a matter of optional preference.

It is compatible with the 2-in-1 ground and middle telescopic spreader (sold as an optional accessory) and it features a 3-angle selection mechanism for easy set up. It is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to the most diverse shooting locations.

Supplied with its own padded carrying bag.

Specification
Specification
Top Attachment 1/4" screw; 3/8" screw
Ball Flat Flat
Counterbalance System Variable Steps
Base Diameter 75mm
Bubble Spirit Level (No.) 1
Easy Link Yes (with anti-rotation)
Head Type Video/Fluid Head
Pan Bar Included Yes
Panoramic Rotation 360 º
Quick Release Yes
Counterbalance Weight 2.2; 4.4; 6.5 Kg
Centre of Gravity 55 mm
Front Tilt -70º / +90º
Tilt Drag Continuously adjustable from 0 to max level
Pan Drag Continuously adjustable from 0 to max level
Plate Type 504PLONGR-1
Safety Payload Weight 12 Kg
Powered By (Batteries) Lithium
Carrying Bag Included Yes
Centre Column No centre column
Closed Length 89.5 cm
Colour Black
Leg Type Twin
Leg Angles 20º; 50º; 70º
Leg Lock Type Flip Lock
Spreader Mid Level - variable arm length
Material Aluminium
Maximum Height 173 cm
Maximum Working Temperature 60ºC
Minimum Height 43.5 cm
Minimum Working Temperature -30ºC
Compatible Accessories 114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
Weight 6.2 Kg
