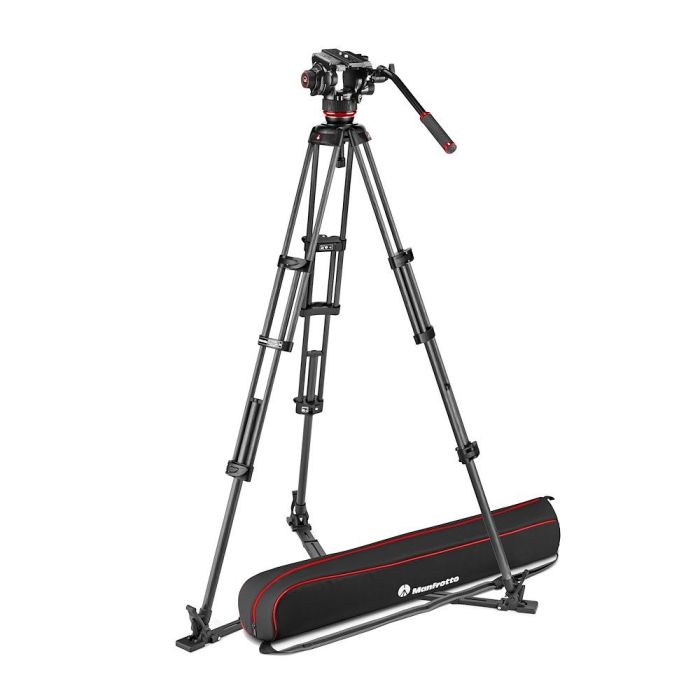

Manfrotto 504X Fluid Video Head with CF Twin leg tripod GS

£950.79
Out of stock - please call for ETA
SKU
MVK504XTWINGC

Manfrotto 504X Fluid Video Head with CF Twin leg tripod GS.

  • Fluid video head with 4-step counterbalance system up to 6.5 kg.
  • Maximum versatility thanks to flat base
  • Carbon Fiber twin leg tripod for greater rigidity
  • Side lock plate & two 3/8''easy link connectors for accessories
  • Adjustable ground spreader for extra stability and versatility.


This video system includes the Manfrotto 504X Fluid Video Head and the Manfrotto MVTTWINGC carbon fibre twin leg with ground spreader tripod.

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The tripod head is made from a brand-new aluminium design and has a maximum payload of 12 kg.  It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The head attaches to the tripod via a dedicated 75mm half ball.

The MVTTWINGC carbon fibre twin leg with ground spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of projects. To create professional level videos or films, then this tripod is for you. It features an aluminum casting 100mm bowl, and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the tripod to be used in combination with the middle spreader Manfrotto 537SPRB and rubber shoes 565, which are sold separately.

Leg locks are secure and reliable and twin spiked feet are provided for external use, e.g. in the grass. This tripod can be used with various dollies (114MV and 181B).

Supplied with its own padded carrying bag.

Specification
Specification
Top Attachment 1/4" screw; 3/8" screw
Ball Flat Flat
Counterbalance System Variable Steps
Base Diameter 75mm
Bubble Spirit Level (No.) 1
Easy Link Yes (with anti-rotation)
Head Type Video/Fluid Head
Pan Bar Included Yes
Panoramic Rotation 360 º
Quick Release Yes
Counterbalance Weight 2.2; 4.4; 6.5 Kg
Centre of Gravity 55 mm
Front Tilt -70º / +90º
Tilt Drag Continuously adjustable from 0 to max level
Pan Drag Continuously adjustable from 0 to max level
Plate Type 504PLONGR-1
Safety Payload Weight 12 Kg
Powered By (Batteries) Lithium
Carrying Bag Included Yes
Centre Column No centre column
Closed Length 85 cm
Colour Black
Leg Type Twin
Leg Lock Type Flip Lock
Spreader Low Level - variable arm length
Material Carbon Fibre
Maximum Height 175 cm
Maximum Working Temperature 60ºC
Minimum Height 49 cm
Minimum Working Temperature -30ºC
Compatible Accessories 114MV; 181B; 565; 537SPRB; MVAPANBARM; MVAPANBARL
Weight 5.57 Kg
