Manfrotto Gimbal 300XM



Manfrotto Gimbal 300XM.

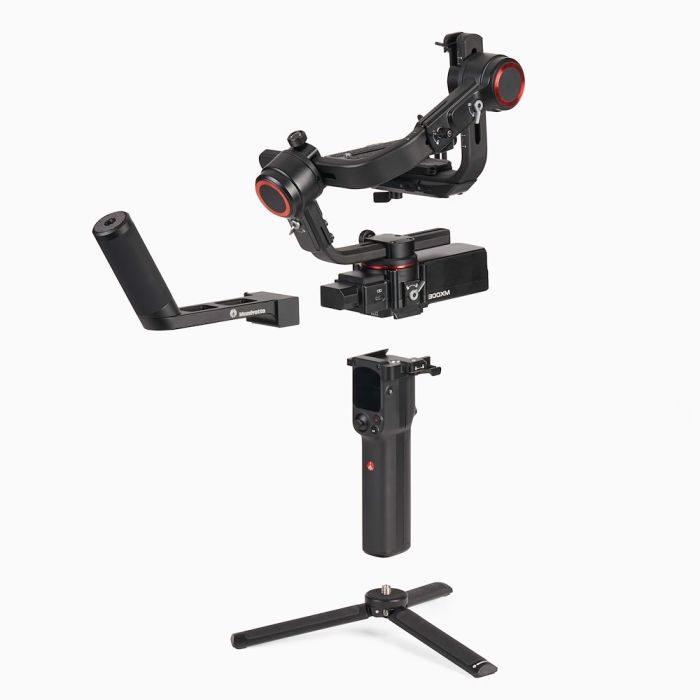

  • Modular design with detachable handle allows greater versatility
  • Detachable handle can be used as a remote control
  • Easy shooting control using the LCD touch screen or from the app
  • Independent locking - each axis is equipped with a lock
  • Balancing position memory red dot on both vertical & cross arms

Manfrotto Modular Gimbal MVG300XM is a professional 3-Axis Stabilized Handheld Modular Gimbal. The handle can be easily detached to be used as a remote control and allows the gimbal to be used in combination with many different types of support.
Designed for CSC and DSLR cameras, it can support up to 3.4 kg / 7.495 lbs and is perfect for videographers looking for versatility and modularity.

The Gimbal handle features a LCD touch screen allowing easy choice of settings. A joystick enables straightforward operation of gimbal movements, while a multifunction knob provides greater control and focus control*.

When the handle is detached, it allows the gimbal to be controlled remotely and thanks to the integrated gyro, the handle movements can be mimic.

Balancing is made easier with a position memory red dot on both the vertical and cross arms.

300XM Gimbal offers different shooting modes including:

- Timelapse
- Inception
- Panorama
- Portrait
- Selfie

It is also supplied with a removable rear versatile handle that can be used for better support, especially when shooting at different angle. Also included a mini tripod for easy camera installation and balancing.

A dedicated Manfrotto Gimbal 300XM App is available for simple control of your gimbal and allow some functions to be performed remotely.

To prevent shaking and for easy transportation, the motor is equipped with independent locking for each axis.

*Please check the camera compatibility chart.

Product Contents

USB 2.0 to Type-C; Type-C to Micro(A03); Type-C to TRS2.5 (T02); Type-C to Mini (B02); Type-C to Type-C (C02)

Type-C to Multi Sony shutter cable; Type-C to 2.5mm Panasonic shutter cable(DC2.5mm)


Versatile handle

Quick release plate

Higher block

Short quick release plate (GimBoom)

Lens holder screw

Camera fixed screw

3/8 to 1/4 inch transition screw

Lens holder


Weight 2 Kg
Dimensions 19.6 x 29 x 46 cm
Payload 3.4 Kg
Tilting Angle 340 °
Rolling Angle 340 °
Panning Angle 360 °
Battery Life 10 Hours
Certifications CE, EAC, KC, FCC, IC, NCC, RCM, SRRC, TELEC
Controllable Tilt Range +175° to -55°
Powered by (Batteries) Li-Ion
Charging Mode USB-C
Attachment Type 3/8" adapter, 1/4 inch thread hole on the bottom of the gimbal
Charging Time 2,6 hours
Usage Time Up to 10 hours
Output Connection Wi-Fi, USB-C port
App Manfrotto Gimbal 300XM
Minimum Working Temperature -10 °C
Maximum Working Temperature 45 °C
