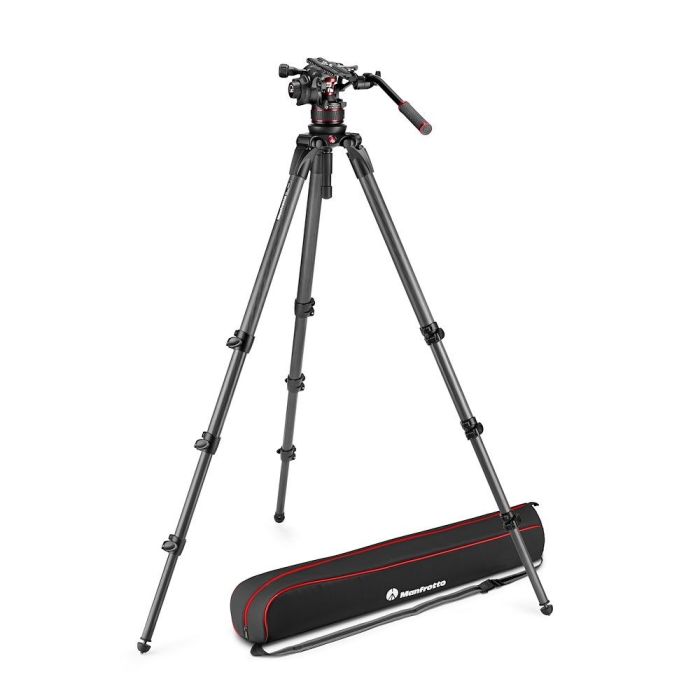

Manfrotto Nitrotech 612 Series with 536 CF Tall Single Legs Tripod

£1,484.12

SKU
MVK612CTALL

Manfrotto Nitrotech 612 Series with 536 CF Tall Single Legs Tripod.

  • Fluid video head with continuous counterbalance system (4-12 Kg)
  • Variable continuous fluid pan & tilt drag system
  • Flat base mount ideal for various applications
  • Lightweight single CF leg tripod, versatile operating height


This video system from Manfrotto includes the NITROTECH 612 Fluid Video Head (flat base) and the 536 Tall Single Tripod in carbon fibre.

The NITROTECH 612 fluid video head features state-of-the-art technology consisting of a Nitrogen piston mechanism that allows a continuous counterbalance system enabling the precise control of a camera and accessories from 4kg up to 12kg at 55mm centre of gravity. The variable fluidity function on both pan and tilt allows smooth, judder-free movement. It also features a 3/8” Easy Link equipped with an anti-rotation function that enables an external monitor or other accessories to be fitted. The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH 612 head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, rig or crane).

The head attaches to the tripod with a 100 mm half ball.

The 536 carbon fibre tripod has 4 sections and offers great stability combined with a maximum height of 203cm.

The single tube structure makes it lightweight, ergonomic and easy to use.

The tripod leg angle selectors allow each leg to be set quickly and easily and independently of each other (3 steps: 23°-50°-70°).

Supplied with its own padded carrying bag.

Specification
Specification
Top Attachment 1/4" screw; 3/8" screw
Safety Payload Weight 12 Kg
Counterbalance System Variable Continuous
Powered By (Batteries) Lithium
Counterbalance Weight 4 → 12 Kg
Base Diameter 75 mm
Bubble Spirit Level (No.) 1
Centre of Garavity 55 mm
Carrying Bag Included Yes
Centre Column No centre column
Closed Length 87 cm
Colour Black
Easy Link Yes (with anti-rotation)
Front Tilt -70º / +90º
Head Type Video/Fluid Head
Leg Type Single
Leg Angles 23º; 50º; 70º
Leg Lock Type Flip Lock
Leg Sections 4
Material Aluminium; Carbon Fibre
Maximum Height 218 cm
Maximum Working Temperature 50 ºC
Minimum Height 42 cm
Minimum Working Temperature -20 ºC
Pan Bar Included Yes
Pan Drag Continuously adjustable from 0 to max level
Panoramic Rotation 360 º
Plate Type 504PLONGRL
Quick Release Yes
Tilt Drag Continuously adjustable from 0 to max level
Weight 6.27 Kg
Accessory Compatibility 114; 127V; 127VS; MVAPANBARM; MVAPANBARL
